The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is mo

The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is modular and compact, versatile, a secure investment, and is powerfully fit for a full range of applications.

A scalable and flexible design, a communication interface that fulfills the highest standards of industrial communication and a full range of powerful integrated technology functions make this controller an integral part of a complete and comprehensive automation solution.

The SIMATIC S7-1200 system comes in five different models, CPU 1211C, CPU 1212C, CPU 1214C, 1215C and 1217C, that may each be expanded to exactly fit your machine requirements.

One signal board can be added inside the front of any CPU to easily expand the digital or analog I/Os without affecting the physical size of the controller.

Signal modules can be connected to the right side of the CPU to further expand the digital or analog I/O capacity.
CPU 1212C accepts two, CPU 1214C, CPU 1215C and CPU 1217C accept eight signal modules.

Finally, all SIMATIC S7-1200 CPUs can be equipped with up to three communication modules on the left side of the controller for performing point-to-point serial communication, as well as various distributed network architectures.


Design

  • Four device versions with different power supply and control voltages

  • Integrated power supply either as wide-range AC or DC power supply (85 to 264 V AC or 24 V DC)

  • Integrated 24 V encoder/load current supply: For direct connection of sensors and encoders. With 300 mA output current also for use as load power supply

  • Two integrated analog inputs 0 to 10 V

  • Two integrated analog outputs 0 to 20 mA for CPU’s 1215C and 1217C

  • Four pulse train outputs (PTO) with a frequency of up to 1 MHz

  • Pulse width modulated (PWM) outputs with a frequency of up to 200 kHz

  • CPU 1211C, CPU 1212C und CPU 1214C:
    One integrated Ethernet interface (PROFINET, TCP/IP native, ISO-on-TCP)

  • CPU 1215C and 1217C:
    Two integrated Ethernet interfaces (PROFINET, TCP/IP native, ISO-on-TCP)

  • Expansion by additional communication interfaces, e.g. RS485 or RS232, PROFIBUS, AS-I, CANopen, etc…

  • Expansion by analog or digital signals directly on the CPU viasignal board (with retention of CPU mounting dimensions)

  • Optional memory expansion (SIMATIC Memory Card)

  • PID controller with auto-tuning functionality

  • Integral real-time clock

  • Interrupt inputs: For extremely fast response to rising or falling edges of process signals

  • Removable terminals on all modules

  • Simulator (optional):
    For simulating the integrated inputs and for testing the user program.

  • Signal Board

    Article No.

    SB 1221 - Digital Inputs

    6ES7221-xxxxx-0XB0

    SB 1221 DI 4 x 5V DC 200 KHz

    6ES7221-3AD30-0XB0

    SB 1221 DI 4 x 24V DC 200 KHz

    6ES7221-3BD30-0XB0

    SB 1222 - Digital outputs

    6ES7222-xxxxx-0XB0

    SB 1222 DQ 4 x 5V DC 200 KHz

    6ES7222-1AD30-0XB0

    SB 1222 DQ 4 x 24V DC 200 KHz

    6ES7222-1BD30-0XB0

    SB 1223 - Digital I/O

    6ES7223-xxxxx-0XB0

    SB 1223 DI 2 x 5V DC / DQ 2 x 5 V DC 200 KHz

    6ES7223-3AD30-0XB0

    SB 1223 DI 2 x 24V DC / DQ 2 x 24 V DC 200 KHz

    6ES7223-3BD30-0XB0

    SB 1231 - Analog inputs

    6ES7231-xxxxx-0XB0

    SB 1231 AI 1 x 13 bit analog input (voltage/current)

    6ES7231-4HA30-0XB0

    SB 1231 T 1 x 15 Bit analog input (thermocouple)

    6ES7231-5QA30-0XB0

    SB 1231 RTD 1 x 15 Bit analog input (resistance)

    6ES7231- 5PA30-0XB0

    SB 1232 - Analog outputs

    6ES7232-xxxxx-0XB0

    SB 1232 AQ 1 x 13 bit analog output (voltage/current)

    6ES7232-4HA30-0XB0

Digital inputs as supplement to the integral IO of the CPUs

The SM 1221 digital input signal modules convert the level of the external digital signals from the process to the internal signal level of the S7-1200.

  • For flexible adaptation of the controller to the task at hand. This avoids superfluous investment. Modules with 8, 16 and 32 input/output channels are available.

  • For subsequent extension of the system with additional input. If the task is extended subsequently, the controller can be upgraded with one of these digital modules. Updating of the user program in TIA Portal is extremely simple.

The portfolio comprises 12 different modules.

Digital input module SM 1221
The SM 1221 digital input signal modules convert the level of the external digital signals from the process into the internal signal level of the S7-1200.

Digital output module SM 1222
Modules with 24 V DC outputs, relay outputs or relay outputs changeover.

Digital hybrid module SM 1223
Digital hybrid modules offer digital inputs and outputs in one device with a small footprint.

Module

Article No.

SM 1221 - Digital input modules

6ES7221-xxxxx-0XB0

SM 1221 DI 8 x 24 V-DC input

6ES7221-1BF32-0XB0

SM 1221 DI 16 x 24 V-DC input

6ES7221-1BH32-0XB0

SM 1222 - Digital output modules

6ES7222-xxxxx-0XB0

SM 1222 DQ 8 x 24 V-DC output

6ES7222-1BF32-0XB0

SM 1222 DQ 16 x 24 V-DC output

6ES7222-1BH32-0XB0

SM 1222 DQ RLY 8 x relay output

6ES7222-1HF32-0XB0

SM 1222 DQ RLY 16 x relay output

6ES7222-1HH32-0XB0

SM 1222 DQ RLY 8 x relay output changeover

6ES7222-1XF32-0XB0

SM 1223 - Digital hybrid modules

6ES7223-xxxxx-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x 24 V-DC-output

6ES7223-1BH32-0XB0

SM 1223 DI/DQ 16 x 24 V DC input /16 x 24 V DC output

6ES7223-1BL32-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x relay output

6ES7223-1PH32-0XB0

SM 1223 DI/DQ 16 x 24 V-DC input / 16 x relay output

6ES7223-1PL32-0XB0

SM 1223 DI/DQ 8 x 120/230 V-AC input / 8 x relay output

6ES7223-1QH32-0XB0


Analog inputs for SIMATIC S7-1200

The SM 1231 analog input signal modules convert analog signals from the process into digital signals for internal processing by the SIMATIC S7-1200.

  • With extremely short conversion times

  • For connecting analog actuators and sensors up to 14 bit resolution and different input ranges without additional amplifiers.

  • For solving even more complex automation tasks. Updating of the user program is extremely simple.

RTD-Module SM 1231
The SM 1231 RTD modules enable temperatures to be measured with high precision using resistance-based temperature sensors.
The most popular resistance-based temperature sensors can be used. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The sensors can be connected with 2, 3 or 4 cables.

Thermocouple modules SM 1231
The SM 1231 thermocouple modules enable temperatures to be measured with high precision using established thermocouples. In addition, low level analog signals in the ±80 mV range can be recorded. Four thermocouples each of types J, K, T, E, R, S and N can be used. They are connected directly to the module without amplifiers.
For maximum possible measurement and repeat accuracy, the thermocouple modules should be mounted in locations with low temperature variations.

Hybrid module SM 1234
Analog hybrid modules offer digital inputs and outputs in one module with a small footprint.

Module

Article No.

SM 1231 - Analog input modules

6ES7231-xxxxx-0XB0

SM 1231 AI 4 x 13 bit analog input (voltage/current)

6ES7231-4HD32-0XB0

SM 1231 AI 8 x 13 bit analog input (voltage/current)

6ES7231-4HF32-0XB0

SM 1231 AI 4 x 16 bit analog input (voltage/current)

6ES7231-4ND32-0XB0

SM 1231 AI RTD 4 x 16 bit analog input (resistance)

6ES7231-5PD32-0XB0

SM 1231 AI RTD 8 x 16 bit analog input (resistance)

6ES7231-5PF32-0XB0

SM 1231 AI TC 4 x 16 bit analog input (thermocouple)

6ES7231-5QD32-0XB0

SM 1231 AI TC 8 x 16 bit analog input (thermocouple)

6ES7231-5QF32-0XB0

SM 1232 - Analog output modules

6ES7232-xxxxx-0XB0

SM 1232 DC 2 x 14 bit analog output (voltage/current)

6ES7232-4HB32-0XB0

SM 1232 DC 4 x 14 bit analog output (voltage/current)

6ES7232-4HD32-0XB0

SM 1234 - Analog hybrid modules

6ES7234-xxxxx-0XB0

SM 1234 DC/DC 4 x 13 bit analog input / 2 x 14 bit analog output (voltage/current)

6ES7234-4HE32-0XB0


Description

Integrated PROFINET Interface

The SIMATIC S7-1200 supports communication with PROFINET IO devices as a PROFINET IO controller. By means of the integrated Web-server, information can be called via the CPU and process data via a standard Web browser. Data can also be archived from the user program during runtime.

Utilizing established TCP/IP standards, the integrated PROFINET interface provided with the SIMATIC S7-1200 can be used for programming or to communicate with HMI devices and additional controllers. As a PROFINET IO controller, SIMATIC S7-1200 now supports communication with PROFINET IO devices and drives.
The interface consists of a noise-immune RJ45 connector with auto-cross-over functionality,
which supports Ethernet networks and features a data transmission rate of up to 10/100
Mbit/s.

New with firmware version 4.0 CPU’s Profinet iDevice:
Easiest configuration for S7-1200 CPU’s into a Controller / device architecture by reading & writing into each others IO image.

Communication with third-party devices

Seamless integration of devices from other manufacturers is possible with the integrated PROFINET interface on the SIMATIC S7-1200. It is possible to connect and communicate with multiple third-party devices utilizing the supported open Ethernet protocols TCP/IP native and ISO on TCP.
This communication capability, which is configured with standard T-Send/T-Receive instructions provided by the integrated engineering system SIMATIC STEP 7 Basic, offers you an even higher level of flexibility in designing your automation solution.

New with firmware version 4.0 CPU’s now have more communications options:

  • CM IO link Master
    Fast and easy integration of the SIRIUS compact starters, M200D starters and SIRIUS soft-starters for simple starter control as well as third party IO link devices

Easy communication modules

Up to 3 communication modules can be added to any of the SIMATIC S7-1200 CPUs.
The RS485 and RS232 communication modules are fit for serial, character-based point-to-point connections. The library functions USS drive protocol and Modbus RTU Master and Slave protocols are already included within the SIMATIC STEP 7 Basic engineering system.

To the top of the page

Fast fieldbus communication via PROFIBUS – the fieldbus standard

Thanks to the addition of Master or Slave to PROFIBUS DB for SIMATIC S7-1200 - the powerful fieldbus communication with fast reaction times - a uniform communication from the field level to the control level is achievable. This supports one of the most important requirements in the segment of compact automation.
There are two new communication modules (CMs) that facilitate the connection of S7-1200 to PROFIBUS. Up to 16 field devices may be connected as DP slaves with the DP Master
CM 1243-5, as decentralized peripheral ET 200 units, for example. The S7-1200 may function as a DP slave with the CM 1242-5 and may thus be connected to any other DP master. Both modules are easily connected to the backplane of the CPU on the left side.

Simple networking

To minimize cabling and provide maximum networking flexibility, the CSM 1277 Compact Switch Module can be used to configure a uniform or mixed network - with line, tree or star topologies. The CSM 1277 is a 4-port unmanaged switch, which allows you to connect the SIMATIC
S7-1200 with up to three additional devices.

Simple Telecontrol applications via GPRS

Together with the GPRS communication processor, the S7-1200 CPU supports simple Telecontrol applications for monitoring and control of distributed stations using general packet radio service (GPRS). This enables machine to machine Telecontrol via Teleserver Basic as well as Data Acquisition. SMS messaging for event driven fault diagnostics are made possible with the GPRS module, and full Teleservice functionally can be realized for remote diagnostics, configuration & programming.

Easy communication via AS-i

AS-i is an open and manufacturer independent bus system transmitting process and machine level digital and analog signals up to the control system. Universal interface between actuators and sensors on the field level with easy integration of I/O modules, positioning switches, signaling columns, load feeders and motor starters into SIMATIC STEP 7 Basic


SIMATIC HMI Basic Panels 1st Generation

KP300 Basic mono

3 inch panel with FSTN- monochrome display

The KP300 Basic mono is the ideal HMI-component for the small S7-1200 controller systems. The color of backlight can be programmed (white, green, yellow or red) and assigned to individual alarms. The KP300 can thus also be used as an alternative to an alarm indicator lamp with no need for additional cabling, assigning I/Os and programming.

Technical Data

KP300 Basic mono PN

Hardware

Display

3.6 inch FSTN , monochrome

Resolution

240 x 80 pixels

Control elements

10 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

149 x 82 mm (W x H)

Front panel

165 x 97 mm (W x H)

Device depth

36 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

250

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP400 Basic mono PN and KTP400 Basic color PN

4 inch touch panels with function keys and monochrome or color display
The KTP400 Basic mono is a cost-effective device for small-scale HMI tasks for the use in PROFINET networks; particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP400 Basic color is the ideal HMI-component for the small to medium S7-1200 controller systems equipped with a 4.3 inch TFT display offering 256 colors

Technical Data

KTP400 Basic mono PN

KTP400 Basic color PN

Hardware

Display

3.8 inch STN, 4 greyscales

4.3 inch TFT, 256 colors

Resolution

320 x 240 px

480 x 272 px

Control elements

Touch screen / 4 function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

123 x 99 mm (W x H)

Front panel

140 x 116 mm (W x H)

197 x 141 mm (W x H)

Device depth

40 mm

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

250

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KP400 Basic color PN

4 inch key panel with color display
Panel for HMI tasks of limited complexity; where keypad operation is preferred.
The KP400 Basic color is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
With regard to the type of applications the KP400 Basic color can replace an OP 77A.

Technical Data

KP400 Basic color PN

Hardware

Display

4.3 inch TFT, 256 colors

Resolution

480 x 272 px

Control elements

Membrane keypad (26 keys), 8 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

135 x 171 mm (W x H)

Front panel

162 x 190 mm (W x H)

Device depth

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP600 Basic mono PN and KTP600 Basic color DP/PN

6inch touch panels with function keys
The KTP600 Basic mono PN is a favourably priced Basic Panel with a convenient 6 inch grey scale display for HMI tasks of limited complexity yet enhanced requirements in size and connection to a PROFINET network; especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP600 Basic color is available in two versions: KTP600 Basic color DP for MPI/PROFIBUS DP connections and KTP600 Basic color PN with an Ethernet interface.

Technical Data

KTP600 Basic mono PN

KTP600 Basic color DP/PN

Hardware

Display

5.7 inch STN /4 greyscales

5.7 inch TFT / 256 colors

Resolution

320 x 240 px

320 x 240 px

Control elements

Touch screen / 6 Function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET
-

1 x RJ 45 Ethernet for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

214 x 158 mm (W x H)

Device depth

51 mm

51

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

500

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KTP1000 Basic color DP / PN

10 inch touch panel with function keys and color display
Basic Panel for HMI tasks in the medium performance range (without scripts and archives) with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP1000 meets higher requirements
The KTP1000 Basic color is available in two versions: KTP1000 Basic color DP for MPI/PROFIBUS DP connections and KTP1000 Basic color PN with an Ethernet interface.

Technical Data

KTP1000 Basic color DP/PN

Hardware

Display

10.4 inch TFT display, 256 colors

Resolution

640 x 480 px

Control elements

Touch screen, 8 function keys

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 248 mm (W x H)

Front panel

335 x 275 mm (W x H)

Device depth

67mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

TP1500 Basic color PN

15 inch touch panel with color display
HMI device for tasks in the medium performance range for the use in PROFINET networks. The TP1500 Basic color is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the TP1500 meets high requirements.

Technical Data

TP1500 Basic color PN

Hardware

Display

15.1 inch TFT display, 256 colors

Resolution

1024 x 768

Control elements

Touch screen

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

367 x 289 mm (W x H)

Front panel

400 x 310 mm (W x H)

Device depth

67 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-


SIMATIC HMI Basic Panels 2nd Generation - Device overview

To the top of the page

KTP400 Basic

4 inch widescreen Touch panel with color display and 4 function keys.
Panel for HMI tasks of limited complexity.
The KTP400 Basic is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.

Technical Data

KTP400 Basic

Hardware

Display

4.3 inch TFT, 64K colors

Resolution

480 x 272 px

Control elements

Touch screen / 4 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

Front panel

141 x 116 mm (W x H)

Device depth

43 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.

6AV2123-2DB03-0AX0

To the top of the page

KTP700 Basic and KTP700 Basic DP

7 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other controllers
The KTP700 Basic is available in two versions: KTP700 Basic with an Ethernet interface and KTP700 Basic DP for MPI/PROFIBUS DP connections.

Technical Data

KTP700 Basic

KTP700 Basic DP

Hardware

Display

7 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

Device depth

46 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2GB03-0AX0

6AV2123-2GA03-0AX0

To the top of the page

KTP900 Basic

9 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the medium performance range with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP900 meets higher requirements
The KT900 Basic is only available in a version with an Ethernet interface for the use in PROFINET networks.

Technical Data

KTP900 Basic

Hardware

Display

9 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

251 x 166 mm (W x H)

Front panel

267 x 182 mm (W x H)

Device depth

47 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2JB03-0AX0

To the top of the page

KTP1200 Basic and KTP1200 Basic DP

SIMATIC HMI KTP1200 Basic

12 inch widescreen touch panel with color display and 10 function keys
HMI devices for tasks in the medium performance range for the use in PROFINET or PROFIBUS networks. The KTP1200 Basic is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the KTP1200 meets higher requirements.

Technical Data

KTP1200 Basic

KTP1200 Basic DP

Hardware

Display

12 inch TFT display, 64K colors

Resolution

1280 x 800

Control elements

Touch screen / 10 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 221 mm (W x H)

Front panel

330 x 245 mm (W x H)

Device depth

62 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f (t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2MB03-0AX0

6AV2123-2MA03-0AX0

To the top of the page

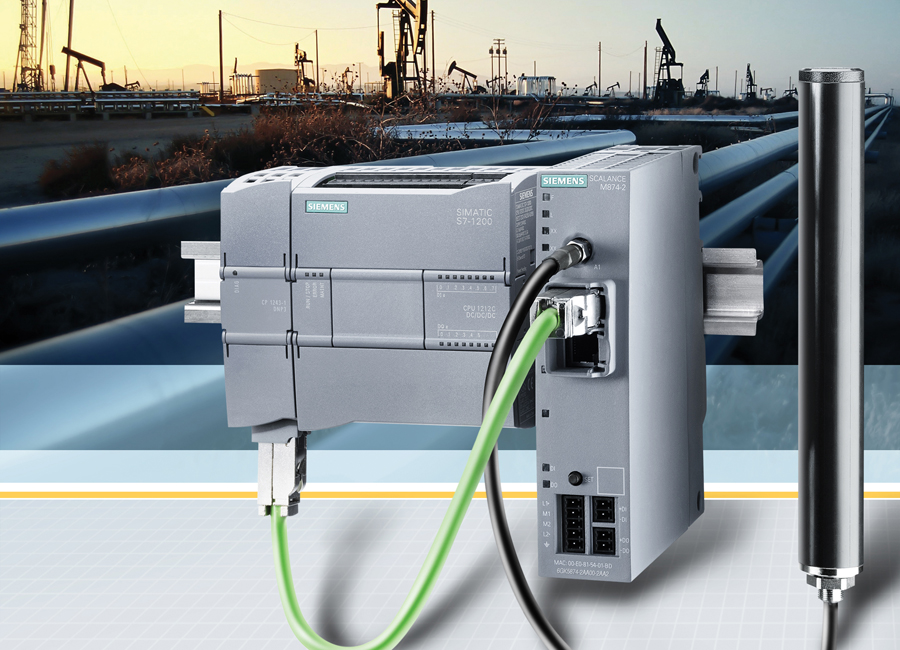

dular and compact, versatile, a secure investment, and is powerfully fit for a full range of applications.

A scalable and flexible design, a communication interface that fulfills the highest standards of industrial communication and a full range of powerful integrated technology functions make this controller an integral part of a complete and comprehensive automation solution.

The SIMATIC S7-1200 system comes in five different models, CPU 1211C, CPU 1212C, CPU 1214C, 1215C and 1217C, that may each be expanded to exactly fit your machine requirements.

One signal board can be added inside the front of any CPU to easily expand the digital or analog I/Os without affecting the physical size of the controller.

Signal modules can be connected to the right side of the CPU to further expand the digital or analog I/O capacity.
CPU 1212C accepts two, CPU 1214C, CPU 1215C and CPU 1217C accept eight signal modules.

Finally, all SIMATIC S7-1200 CPUs can be equipped with up to three communication modules on the left side of the controller for performing point-to-point serial communication, as well as various distributed network architectures.


Design

  • Four device versions with different power supply and control voltages

  • Integrated power supply either as wide-range AC or DC power supply (85 to 264 V AC or 24 V DC)

  • Integrated 24 V encoder/load current supply: For direct connection of sensors and encoders. With 300 mA output current also for use as load power supply

  • Two integrated analog inputs 0 to 10 V

  • Two integrated analog outputs 0 to 20 mA for CPU’s 1215C and 1217C

  • Four pulse train outputs (PTO) with a frequency of up to 1 MHz

  • Pulse width modulated (PWM) outputs with a frequency of up to 200 kHz

  • CPU 1211C, CPU 1212C und CPU 1214C:
    One integrated Ethernet interface (PROFINET, TCP/IP native, ISO-on-TCP)

  • CPU 1215C and 1217C:
    Two integrated Ethernet interfaces (PROFINET, TCP/IP native, ISO-on-TCP)

  • Expansion by additional communication interfaces, e.g. RS485 or RS232, PROFIBUS, AS-I, CANopen, etc…

  • Expansion by analog or digital signals directly on the CPU viasignal board (with retention of CPU mounting dimensions)

  • Optional memory expansion (SIMATIC Memory Card)

  • PID controller with auto-tuning functionality

  • Integral real-time clock

  • Interrupt inputs: For extremely fast response to rising or falling edges of process signals

  • Removable terminals on all modules

  • Simulator (optional):
    For simulating the integrated inputs and for testing the user program.

  • Signal Board

    Article No.

    SB 1221 - Digital Inputs

    6ES7221-xxxxx-0XB0

    SB 1221 DI 4 x 5V DC 200 KHz

    6ES7221-3AD30-0XB0

    SB 1221 DI 4 x 24V DC 200 KHz

    6ES7221-3BD30-0XB0

    SB 1222 - Digital outputs

    6ES7222-xxxxx-0XB0

    SB 1222 DQ 4 x 5V DC 200 KHz

    6ES7222-1AD30-0XB0

    SB 1222 DQ 4 x 24V DC 200 KHz

    6ES7222-1BD30-0XB0

    SB 1223 - Digital I/O

    6ES7223-xxxxx-0XB0

    SB 1223 DI 2 x 5V DC / DQ 2 x 5 V DC 200 KHz

    6ES7223-3AD30-0XB0

    SB 1223 DI 2 x 24V DC / DQ 2 x 24 V DC 200 KHz

    6ES7223-3BD30-0XB0

    SB 1231 - Analog inputs

    6ES7231-xxxxx-0XB0

    SB 1231 AI 1 x 13 bit analog input (voltage/current)

    6ES7231-4HA30-0XB0

    SB 1231 T 1 x 15 Bit analog input (thermocouple)

    6ES7231-5QA30-0XB0

    SB 1231 RTD 1 x 15 Bit analog input (resistance)

    6ES7231- 5PA30-0XB0

    SB 1232 - Analog outputs

    6ES7232-xxxxx-0XB0

    SB 1232 AQ 1 x 13 bit analog output (voltage/current)

    6ES7232-4HA30-0XB0

Digital inputs as supplement to the integral IO of the CPUs

The SM 1221 digital input signal modules convert the level of the external digital signals from the process to the internal signal level of the S7-1200.

  • For flexible adaptation of the controller to the task at hand. This avoids superfluous investment. Modules with 8, 16 and 32 input/output channels are available.

  • For subsequent extension of the system with additional input. If the task is extended subsequently, the controller can be upgraded with one of these digital modules. Updating of the user program in TIA Portal is extremely simple.

The portfolio comprises 12 different modules.

Digital input module SM 1221
The SM 1221 digital input signal modules convert the level of the external digital signals from the process into the internal signal level of the S7-1200.

Digital output module SM 1222
Modules with 24 V DC outputs, relay outputs or relay outputs changeover.

Digital hybrid module SM 1223
Digital hybrid modules offer digital inputs and outputs in one device with a small footprint.

Module

Article No.

SM 1221 - Digital input modules

6ES7221-xxxxx-0XB0

SM 1221 DI 8 x 24 V-DC input

6ES7221-1BF32-0XB0

SM 1221 DI 16 x 24 V-DC input

6ES7221-1BH32-0XB0

SM 1222 - Digital output modules

6ES7222-xxxxx-0XB0

SM 1222 DQ 8 x 24 V-DC output

6ES7222-1BF32-0XB0

SM 1222 DQ 16 x 24 V-DC output

6ES7222-1BH32-0XB0

SM 1222 DQ RLY 8 x relay output

6ES7222-1HF32-0XB0

SM 1222 DQ RLY 16 x relay output

6ES7222-1HH32-0XB0

SM 1222 DQ RLY 8 x relay output changeover

6ES7222-1XF32-0XB0

SM 1223 - Digital hybrid modules

6ES7223-xxxxx-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x 24 V-DC-output

6ES7223-1BH32-0XB0

SM 1223 DI/DQ 16 x 24 V DC input /16 x 24 V DC output

6ES7223-1BL32-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x relay output

6ES7223-1PH32-0XB0

SM 1223 DI/DQ 16 x 24 V-DC input / 16 x relay output

6ES7223-1PL32-0XB0

SM 1223 DI/DQ 8 x 120/230 V-AC input / 8 x relay output

6ES7223-1QH32-0XB0


Analog inputs for SIMATIC S7-1200

The SM 1231 analog input signal modules convert analog signals from the process into digital signals for internal processing by the SIMATIC S7-1200.

  • With extremely short conversion times

  • For connecting analog actuators and sensors up to 14 bit resolution and different input ranges without additional amplifiers.

  • For solving even more complex automation tasks. Updating of the user program is extremely simple.

RTD-Module SM 1231
The SM 1231 RTD modules enable temperatures to be measured with high precision using resistance-based temperature sensors.
The most popular resistance-based temperature sensors can be used. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The sensors can be connected with 2, 3 or 4 cables.

Thermocouple modules SM 1231
The SM 1231 thermocouple modules enable temperatures to be measured with high precision using established thermocouples. In addition, low level analog signals in the ±80 mV range can be recorded. Four thermocouples each of types J, K, T, E, R, S and N can be used. They are connected directly to the module without amplifiers.
For maximum possible measurement and repeat accuracy, the thermocouple modules should be mounted in locations with low temperature variations.

Hybrid module SM 1234
Analog hybrid modules offer digital inputs and outputs in one module with a small footprint.

Module

Article No.

SM 1231 - Analog input modules

6ES7231-xxxxx-0XB0

SM 1231 AI 4 x 13 bit analog input (voltage/current)

6ES7231-4HD32-0XB0

SM 1231 AI 8 x 13 bit analog input (voltage/current)

6ES7231-4HF32-0XB0

SM 1231 AI 4 x 16 bit analog input (voltage/current)

6ES7231-4ND32-0XB0

SM 1231 AI RTD 4 x 16 bit analog input (resistance)

6ES7231-5PD32-0XB0

SM 1231 AI RTD 8 x 16 bit analog input (resistance)

6ES7231-5PF32-0XB0

SM 1231 AI TC 4 x 16 bit analog input (thermocouple)

6ES7231-5QD32-0XB0

SM 1231 AI TC 8 x 16 bit analog input (thermocouple)

6ES7231-5QF32-0XB0

SM 1232 - Analog output modules

6ES7232-xxxxx-0XB0

SM 1232 DC 2 x 14 bit analog output (voltage/current)

6ES7232-4HB32-0XB0

SM 1232 DC 4 x 14 bit analog output (voltage/current)

6ES7232-4HD32-0XB0

SM 1234 - Analog hybrid modules

6ES7234-xxxxx-0XB0

SM 1234 DC/DC 4 x 13 bit analog input / 2 x 14 bit analog output (voltage/current)

6ES7234-4HE32-0XB0


Description

Integrated PROFINET Interface

The SIMATIC S7-1200 supports communication with PROFINET IO devices as a PROFINET IO controller. By means of the integrated Web-server, information can be called via the CPU and process data via a standard Web browser. Data can also be archived from the user program during runtime.

Utilizing established TCP/IP standards, the integrated PROFINET interface provided with the SIMATIC S7-1200 can be used for programming or to communicate with HMI devices and additional controllers. As a PROFINET IO controller, SIMATIC S7-1200 now supports communication with PROFINET IO devices and drives.
The interface consists of a noise-immune RJ45 connector with auto-cross-over functionality,
which supports Ethernet networks and features a data transmission rate of up to 10/100
Mbit/s.

New with firmware version 4.0 CPU’s Profinet iDevice:
Easiest configuration for S7-1200 CPU’s into a Controller / device architecture by reading & writing into each others IO image.

Communication with third-party devices

Seamless integration of devices from other manufacturers is possible with the integrated PROFINET interface on the SIMATIC S7-1200. It is possible to connect and communicate with multiple third-party devices utilizing the supported open Ethernet protocols TCP/IP native and ISO on TCP.
This communication capability, which is configured with standard T-Send/T-Receive instructions provided by the integrated engineering system SIMATIC STEP 7 Basic, offers you an even higher level of flexibility in designing your automation solution.

New with firmware version 4.0 CPU’s now have more communications options:

  • CM IO link Master
    Fast and easy integration of the SIRIUS compact starters, M200D starters and SIRIUS soft-starters for simple starter control as well as third party IO link devices

Easy communication modules

Up to 3 communication modules can be added to any of the SIMATIC S7-1200 CPUs.
The RS485 and RS232 communication modules are fit for serial, character-based point-to-point connections. The library functions USS drive protocol and Modbus RTU Master and Slave protocols are already included within the SIMATIC STEP 7 Basic engineering system.

To the top of the page

Fast fieldbus communication via PROFIBUS – the fieldbus standard

Thanks to the addition of Master or Slave to PROFIBUS DB for SIMATIC S7-1200 - the powerful fieldbus communication with fast reaction times - a uniform communication from the field level to the control level is achievable. This supports one of the most important requirements in the segment of compact automation.
There are two new communication modules (CMs) that facilitate the connection of S7-1200 to PROFIBUS. Up to 16 field devices may be connected as DP slaves with the DP Master
CM 1243-5, as decentralized peripheral ET 200 units, for example. The S7-1200 may function as a DP slave with the CM 1242-5 and may thus be connected to any other DP master. Both modules are easily connected to the backplane of the CPU on the left side.

Simple networking

To minimize cabling and provide maximum networking flexibility, the CSM 1277 Compact Switch Module can be used to configure a uniform or mixed network - with line, tree or star topologies. The CSM 1277 is a 4-port unmanaged switch, which allows you to connect the SIMATIC
S7-1200 with up to three additional devices.

Simple Telecontrol applications via GPRS

Together with the GPRS communication processor, the S7-1200 CPU supports simple Telecontrol applications for monitoring and control of distributed stations using general packet radio service (GPRS). This enables machine to machine Telecontrol via Teleserver Basic as well as Data Acquisition. SMS messaging for event driven fault diagnostics are made possible with the GPRS module, and full Teleservice functionally can be realized for remote diagnostics, configuration & programming.

Easy communication via AS-i

AS-i is an open and manufacturer independent bus system transmitting process and machine level digital and analog signals up to the control system. Universal interface between actuators and sensors on the field level with easy integration of I/O modules, positioning switches, signaling columns, load feeders and motor starters into SIMATIC STEP 7 Basic


SIMATIC HMI Basic Panels 1st Generation

KP300 Basic mono

3 inch panel with FSTN- monochrome display

The KP300 Basic mono is the ideal HMI-component for the small S7-1200 controller systems. The color of backlight can be programmed (white, green, yellow or red) and assigned to individual alarms. The KP300 can thus also be used as an alternative to an alarm indicator lamp with no need for additional cabling, assigning I/Os and programming.

Technical Data

KP300 Basic mono PN

Hardware

Display

3.6 inch FSTN , monochrome

Resolution

240 x 80 pixels

Control elements

10 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

149 x 82 mm (W x H)

Front panel

165 x 97 mm (W x H)

Device depth

36 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

250

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP400 Basic mono PN and KTP400 Basic color PN

4 inch touch panels with function keys and monochrome or color display
The KTP400 Basic mono is a cost-effective device for small-scale HMI tasks for the use in PROFINET networks; particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP400 Basic color is the ideal HMI-component for the small to medium S7-1200 controller systems equipped with a 4.3 inch TFT display offering 256 colors

Technical Data

KTP400 Basic mono PN

KTP400 Basic color PN

Hardware

Display

3.8 inch STN, 4 greyscales

4.3 inch TFT, 256 colors

Resolution

320 x 240 px

480 x 272 px

Control elements

Touch screen / 4 function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

123 x 99 mm (W x H)

Front panel

140 x 116 mm (W x H)

197 x 141 mm (W x H)

Device depth

40 mm

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

250

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KP400 Basic color PN

4 inch key panel with color display
Panel for HMI tasks of limited complexity; where keypad operation is preferred.
The KP400 Basic color is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
With regard to the type of applications the KP400 Basic color can replace an OP 77A.

Technical Data

KP400 Basic color PN

Hardware

Display

4.3 inch TFT, 256 colors

Resolution

480 x 272 px

Control elements

Membrane keypad (26 keys), 8 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

135 x 171 mm (W x H)

Front panel

162 x 190 mm (W x H)

Device depth

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP600 Basic mono PN and KTP600 Basic color DP/PN

6inch touch panels with function keys
The KTP600 Basic mono PN is a favourably priced Basic Panel with a convenient 6 inch grey scale display for HMI tasks of limited complexity yet enhanced requirements in size and connection to a PROFINET network; especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP600 Basic color is available in two versions: KTP600 Basic color DP for MPI/PROFIBUS DP connections and KTP600 Basic color PN with an Ethernet interface.

Technical Data

KTP600 Basic mono PN

KTP600 Basic color DP/PN

Hardware

Display

5.7 inch STN /4 greyscales

5.7 inch TFT / 256 colors

Resolution

320 x 240 px

320 x 240 px

Control elements

Touch screen / 6 Function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET
-

1 x RJ 45 Ethernet for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

214 x 158 mm (W x H)

Device depth

51 mm

51

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

500

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KTP1000 Basic color DP / PN

10 inch touch panel with function keys and color display
Basic Panel for HMI tasks in the medium performance range (without scripts and archives) with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP1000 meets higher requirements
The KTP1000 Basic color is available in two versions: KTP1000 Basic color DP for MPI/PROFIBUS DP connections and KTP1000 Basic color PN with an Ethernet interface.

Technical Data

KTP1000 Basic color DP/PN

Hardware

Display

10.4 inch TFT display, 256 colors

Resolution

640 x 480 px

Control elements

Touch screen, 8 function keys

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 248 mm (W x H)

Front panel

335 x 275 mm (W x H)

Device depth

67mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

TP1500 Basic color PN

15 inch touch panel with color display
HMI device for tasks in the medium performance range for the use in PROFINET networks. The TP1500 Basic color is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the TP1500 meets high requirements.

Technical Data

TP1500 Basic color PN

Hardware

Display

15.1 inch TFT display, 256 colors

Resolution

1024 x 768

Control elements

Touch screen

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

367 x 289 mm (W x H)

Front panel

400 x 310 mm (W x H)

Device depth

67 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-


SIMATIC HMI Basic Panels 2nd Generation - Device overview

To the top of the page

KTP400 Basic

4 inch widescreen Touch panel with color display and 4 function keys.
Panel for HMI tasks of limited complexity.
The KTP400 Basic is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.

Technical Data

KTP400 Basic

Hardware

Display

4.3 inch TFT, 64K colors

Resolution

480 x 272 px

Control elements

Touch screen / 4 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

Front panel

141 x 116 mm (W x H)

Device depth

43 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.

6AV2123-2DB03-0AX0

To the top of the page

KTP700 Basic and KTP700 Basic DP

7 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other controllers
The KTP700 Basic is available in two versions: KTP700 Basic with an Ethernet interface and KTP700 Basic DP for MPI/PROFIBUS DP connections.

Technical Data

KTP700 Basic

KTP700 Basic DP

Hardware

Display

7 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

Device depth

46 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2GB03-0AX0

6AV2123-2GA03-0AX0

To the top of the page

KTP900 Basic

9 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the medium performance range with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP900 meets higher requirements
The KT900 Basic is only available in a version with an Ethernet interface for the use in PROFINET networks.

Technical Data

KTP900 Basic

Hardware

Display

9 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

251 x 166 mm (W x H)

Front panel

267 x 182 mm (W x H)

Device depth

47 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2JB03-0AX0

To the top of the page

KTP1200 Basic and KTP1200 Basic DP

SIMATIC HMI KTP1200 Basic

12 inch widescreen touch panel with color display and 10 function keys
HMI devices for tasks in the medium performance range for the use in PROFINET or PROFIBUS networks. The KTP1200 Basic is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the KTP1200 meets higher requirements.

Technical Data

KTP1200 Basic

KTP1200 Basic DP

Hardware

Display

12 inch TFT display, 64K colors

Resolution

1280 x 800

Control elements

Touch screen / 10 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 221 mm (W x H)

Front panel

330 x 245 mm (W x H)

Device depth

62 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f (t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2MB03-0AX0

6AV2123-2MA03-0AX0

To the top of the page


The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is mo

The new modular SIMATIC S7-1200 controller is at the core of our new offering for simple but highly precise automation tasks. The SIMATIC S7-1200 controller is modular and compact, versatile, a secure investment, and is powerfully fit for a full range of applications.

A scalable and flexible design, a communication interface that fulfills the highest standards of industrial communication and a full range of powerful integrated technology functions make this controller an integral part of a complete and comprehensive automation solution.

The SIMATIC S7-1200 system comes in five different models, CPU 1211C, CPU 1212C, CPU 1214C, 1215C and 1217C, that may each be expanded to exactly fit your machine requirements.

One signal board can be added inside the front of any CPU to easily expand the digital or analog I/Os without affecting the physical size of the controller.

Signal modules can be connected to the right side of the CPU to further expand the digital or analog I/O capacity.
CPU 1212C accepts two, CPU 1214C, CPU 1215C and CPU 1217C accept eight signal modules.

Finally, all SIMATIC S7-1200 CPUs can be equipped with up to three communication modules on the left side of the controller for performing point-to-point serial communication, as well as various distributed network architectures.


Design

  • Four device versions with different power supply and control voltages

  • Integrated power supply either as wide-range AC or DC power supply (85 to 264 V AC or 24 V DC)

  • Integrated 24 V encoder/load current supply: For direct connection of sensors and encoders. With 300 mA output current also for use as load power supply

  • Two integrated analog inputs 0 to 10 V

  • Two integrated analog outputs 0 to 20 mA for CPU’s 1215C and 1217C

  • Four pulse train outputs (PTO) with a frequency of up to 1 MHz

  • Pulse width modulated (PWM) outputs with a frequency of up to 200 kHz

  • CPU 1211C, CPU 1212C und CPU 1214C:
    One integrated Ethernet interface (PROFINET, TCP/IP native, ISO-on-TCP)

  • CPU 1215C and 1217C:
    Two integrated Ethernet interfaces (PROFINET, TCP/IP native, ISO-on-TCP)

  • Expansion by additional communication interfaces, e.g. RS485 or RS232, PROFIBUS, AS-I, CANopen, etc…

  • Expansion by analog or digital signals directly on the CPU viasignal board (with retention of CPU mounting dimensions)

  • Optional memory expansion (SIMATIC Memory Card)

  • PID controller with auto-tuning functionality

  • Integral real-time clock

  • Interrupt inputs: For extremely fast response to rising or falling edges of process signals

  • Removable terminals on all modules

  • Simulator (optional):
    For simulating the integrated inputs and for testing the user program.

  • Signal Board

    Article No.

    SB 1221 - Digital Inputs

    6ES7221-xxxxx-0XB0

    SB 1221 DI 4 x 5V DC 200 KHz

    6ES7221-3AD30-0XB0

    SB 1221 DI 4 x 24V DC 200 KHz

    6ES7221-3BD30-0XB0

    SB 1222 - Digital outputs

    6ES7222-xxxxx-0XB0

    SB 1222 DQ 4 x 5V DC 200 KHz

    6ES7222-1AD30-0XB0

    SB 1222 DQ 4 x 24V DC 200 KHz

    6ES7222-1BD30-0XB0

    SB 1223 - Digital I/O

    6ES7223-xxxxx-0XB0

    SB 1223 DI 2 x 5V DC / DQ 2 x 5 V DC 200 KHz

    6ES7223-3AD30-0XB0

    SB 1223 DI 2 x 24V DC / DQ 2 x 24 V DC 200 KHz

    6ES7223-3BD30-0XB0

    SB 1231 - Analog inputs

    6ES7231-xxxxx-0XB0

    SB 1231 AI 1 x 13 bit analog input (voltage/current)

    6ES7231-4HA30-0XB0

    SB 1231 T 1 x 15 Bit analog input (thermocouple)

    6ES7231-5QA30-0XB0

    SB 1231 RTD 1 x 15 Bit analog input (resistance)

    6ES7231- 5PA30-0XB0

    SB 1232 - Analog outputs

    6ES7232-xxxxx-0XB0

    SB 1232 AQ 1 x 13 bit analog output (voltage/current)

    6ES7232-4HA30-0XB0

Digital inputs as supplement to the integral IO of the CPUs

The SM 1221 digital input signal modules convert the level of the external digital signals from the process to the internal signal level of the S7-1200.

  • For flexible adaptation of the controller to the task at hand. This avoids superfluous investment. Modules with 8, 16 and 32 input/output channels are available.

  • For subsequent extension of the system with additional input. If the task is extended subsequently, the controller can be upgraded with one of these digital modules. Updating of the user program in TIA Portal is extremely simple.

The portfolio comprises 12 different modules.

Digital input module SM 1221
The SM 1221 digital input signal modules convert the level of the external digital signals from the process into the internal signal level of the S7-1200.

Digital output module SM 1222
Modules with 24 V DC outputs, relay outputs or relay outputs changeover.

Digital hybrid module SM 1223
Digital hybrid modules offer digital inputs and outputs in one device with a small footprint.

Module

Article No.

SM 1221 - Digital input modules

6ES7221-xxxxx-0XB0

SM 1221 DI 8 x 24 V-DC input

6ES7221-1BF32-0XB0

SM 1221 DI 16 x 24 V-DC input

6ES7221-1BH32-0XB0

SM 1222 - Digital output modules

6ES7222-xxxxx-0XB0

SM 1222 DQ 8 x 24 V-DC output

6ES7222-1BF32-0XB0

SM 1222 DQ 16 x 24 V-DC output

6ES7222-1BH32-0XB0

SM 1222 DQ RLY 8 x relay output

6ES7222-1HF32-0XB0

SM 1222 DQ RLY 16 x relay output

6ES7222-1HH32-0XB0

SM 1222 DQ RLY 8 x relay output changeover

6ES7222-1XF32-0XB0

SM 1223 - Digital hybrid modules

6ES7223-xxxxx-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x 24 V-DC-output

6ES7223-1BH32-0XB0

SM 1223 DI/DQ 16 x 24 V DC input /16 x 24 V DC output

6ES7223-1BL32-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x relay output

6ES7223-1PH32-0XB0

SM 1223 DI/DQ 16 x 24 V-DC input / 16 x relay output

6ES7223-1PL32-0XB0

SM 1223 DI/DQ 8 x 120/230 V-AC input / 8 x relay output

6ES7223-1QH32-0XB0


Analog inputs for SIMATIC S7-1200

The SM 1231 analog input signal modules convert analog signals from the process into digital signals for internal processing by the SIMATIC S7-1200.

  • With extremely short conversion times

  • For connecting analog actuators and sensors up to 14 bit resolution and different input ranges without additional amplifiers.

  • For solving even more complex automation tasks. Updating of the user program is extremely simple.

RTD-Module SM 1231
The SM 1231 RTD modules enable temperatures to be measured with high precision using resistance-based temperature sensors.
The most popular resistance-based temperature sensors can be used. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The sensors can be connected with 2, 3 or 4 cables.

Thermocouple modules SM 1231
The SM 1231 thermocouple modules enable temperatures to be measured with high precision using established thermocouples. In addition, low level analog signals in the ±80 mV range can be recorded. Four thermocouples each of types J, K, T, E, R, S and N can be used. They are connected directly to the module without amplifiers.
For maximum possible measurement and repeat accuracy, the thermocouple modules should be mounted in locations with low temperature variations.

Hybrid module SM 1234
Analog hybrid modules offer digital inputs and outputs in one module with a small footprint.

Module

Article No.

SM 1231 - Analog input modules

6ES7231-xxxxx-0XB0

SM 1231 AI 4 x 13 bit analog input (voltage/current)

6ES7231-4HD32-0XB0

SM 1231 AI 8 x 13 bit analog input (voltage/current)

6ES7231-4HF32-0XB0

SM 1231 AI 4 x 16 bit analog input (voltage/current)

6ES7231-4ND32-0XB0

SM 1231 AI RTD 4 x 16 bit analog input (resistance)

6ES7231-5PD32-0XB0

SM 1231 AI RTD 8 x 16 bit analog input (resistance)

6ES7231-5PF32-0XB0

SM 1231 AI TC 4 x 16 bit analog input (thermocouple)

6ES7231-5QD32-0XB0

SM 1231 AI TC 8 x 16 bit analog input (thermocouple)

6ES7231-5QF32-0XB0

SM 1232 - Analog output modules

6ES7232-xxxxx-0XB0

SM 1232 DC 2 x 14 bit analog output (voltage/current)

6ES7232-4HB32-0XB0

SM 1232 DC 4 x 14 bit analog output (voltage/current)

6ES7232-4HD32-0XB0

SM 1234 - Analog hybrid modules

6ES7234-xxxxx-0XB0

SM 1234 DC/DC 4 x 13 bit analog input / 2 x 14 bit analog output (voltage/current)

6ES7234-4HE32-0XB0


Description

Integrated PROFINET Interface

The SIMATIC S7-1200 supports communication with PROFINET IO devices as a PROFINET IO controller. By means of the integrated Web-server, information can be called via the CPU and process data via a standard Web browser. Data can also be archived from the user program during runtime.

Utilizing established TCP/IP standards, the integrated PROFINET interface provided with the SIMATIC S7-1200 can be used for programming or to communicate with HMI devices and additional controllers. As a PROFINET IO controller, SIMATIC S7-1200 now supports communication with PROFINET IO devices and drives.
The interface consists of a noise-immune RJ45 connector with auto-cross-over functionality,
which supports Ethernet networks and features a data transmission rate of up to 10/100
Mbit/s.

New with firmware version 4.0 CPU’s Profinet iDevice:
Easiest configuration for S7-1200 CPU’s into a Controller / device architecture by reading & writing into each others IO image.

Communication with third-party devices

Seamless integration of devices from other manufacturers is possible with the integrated PROFINET interface on the SIMATIC S7-1200. It is possible to connect and communicate with multiple third-party devices utilizing the supported open Ethernet protocols TCP/IP native and ISO on TCP.
This communication capability, which is configured with standard T-Send/T-Receive instructions provided by the integrated engineering system SIMATIC STEP 7 Basic, offers you an even higher level of flexibility in designing your automation solution.

New with firmware version 4.0 CPU’s now have more communications options:

  • CM IO link Master
    Fast and easy integration of the SIRIUS compact starters, M200D starters and SIRIUS soft-starters for simple starter control as well as third party IO link devices

Easy communication modules

Up to 3 communication modules can be added to any of the SIMATIC S7-1200 CPUs.
The RS485 and RS232 communication modules are fit for serial, character-based point-to-point connections. The library functions USS drive protocol and Modbus RTU Master and Slave protocols are already included within the SIMATIC STEP 7 Basic engineering system.

To the top of the page

Fast fieldbus communication via PROFIBUS – the fieldbus standard

Thanks to the addition of Master or Slave to PROFIBUS DB for SIMATIC S7-1200 - the powerful fieldbus communication with fast reaction times - a uniform communication from the field level to the control level is achievable. This supports one of the most important requirements in the segment of compact automation.
There are two new communication modules (CMs) that facilitate the connection of S7-1200 to PROFIBUS. Up to 16 field devices may be connected as DP slaves with the DP Master
CM 1243-5, as decentralized peripheral ET 200 units, for example. The S7-1200 may function as a DP slave with the CM 1242-5 and may thus be connected to any other DP master. Both modules are easily connected to the backplane of the CPU on the left side.

Simple networking

To minimize cabling and provide maximum networking flexibility, the CSM 1277 Compact Switch Module can be used to configure a uniform or mixed network - with line, tree or star topologies. The CSM 1277 is a 4-port unmanaged switch, which allows you to connect the SIMATIC
S7-1200 with up to three additional devices.

Simple Telecontrol applications via GPRS

Together with the GPRS communication processor, the S7-1200 CPU supports simple Telecontrol applications for monitoring and control of distributed stations using general packet radio service (GPRS). This enables machine to machine Telecontrol via Teleserver Basic as well as Data Acquisition. SMS messaging for event driven fault diagnostics are made possible with the GPRS module, and full Teleservice functionally can be realized for remote diagnostics, configuration & programming.

Easy communication via AS-i

AS-i is an open and manufacturer independent bus system transmitting process and machine level digital and analog signals up to the control system. Universal interface between actuators and sensors on the field level with easy integration of I/O modules, positioning switches, signaling columns, load feeders and motor starters into SIMATIC STEP 7 Basic


SIMATIC HMI Basic Panels 1st Generation

KP300 Basic mono

3 inch panel with FSTN- monochrome display

The KP300 Basic mono is the ideal HMI-component for the small S7-1200 controller systems. The color of backlight can be programmed (white, green, yellow or red) and assigned to individual alarms. The KP300 can thus also be used as an alternative to an alarm indicator lamp with no need for additional cabling, assigning I/Os and programming.

Technical Data

KP300 Basic mono PN

Hardware

Display

3.6 inch FSTN , monochrome

Resolution

240 x 80 pixels

Control elements

10 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

149 x 82 mm (W x H)

Front panel

165 x 97 mm (W x H)

Device depth

36 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

250

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP400 Basic mono PN and KTP400 Basic color PN

4 inch touch panels with function keys and monochrome or color display
The KTP400 Basic mono is a cost-effective device for small-scale HMI tasks for the use in PROFINET networks; particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP400 Basic color is the ideal HMI-component for the small to medium S7-1200 controller systems equipped with a 4.3 inch TFT display offering 256 colors

Technical Data

KTP400 Basic mono PN

KTP400 Basic color PN

Hardware

Display

3.8 inch STN, 4 greyscales

4.3 inch TFT, 256 colors

Resolution

320 x 240 px

480 x 272 px

Control elements

Touch screen / 4 function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

123 x 99 mm (W x H)

Front panel

140 x 116 mm (W x H)

197 x 141 mm (W x H)

Device depth

40 mm

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

250

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KP400 Basic color PN

4 inch key panel with color display
Panel for HMI tasks of limited complexity; where keypad operation is preferred.
The KP400 Basic color is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
With regard to the type of applications the KP400 Basic color can replace an OP 77A.

Technical Data

KP400 Basic color PN

Hardware

Display

4.3 inch TFT, 256 colors

Resolution

480 x 272 px

Control elements

Membrane keypad (26 keys), 8 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

135 x 171 mm (W x H)

Front panel

162 x 190 mm (W x H)

Device depth

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP600 Basic mono PN and KTP600 Basic color DP/PN

6inch touch panels with function keys
The KTP600 Basic mono PN is a favourably priced Basic Panel with a convenient 6 inch grey scale display for HMI tasks of limited complexity yet enhanced requirements in size and connection to a PROFINET network; especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP600 Basic color is available in two versions: KTP600 Basic color DP for MPI/PROFIBUS DP connections and KTP600 Basic color PN with an Ethernet interface.

Technical Data

KTP600 Basic mono PN

KTP600 Basic color DP/PN

Hardware

Display

5.7 inch STN /4 greyscales

5.7 inch TFT / 256 colors

Resolution

320 x 240 px

320 x 240 px

Control elements

Touch screen / 6 Function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET
-

1 x RJ 45 Ethernet for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

214 x 158 mm (W x H)

Device depth

51 mm

51

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

500

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KTP1000 Basic color DP / PN

10 inch touch panel with function keys and color display
Basic Panel for HMI tasks in the medium performance range (without scripts and archives) with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP1000 meets higher requirements
The KTP1000 Basic color is available in two versions: KTP1000 Basic color DP for MPI/PROFIBUS DP connections and KTP1000 Basic color PN with an Ethernet interface.

Technical Data

KTP1000 Basic color DP/PN

Hardware

Display

10.4 inch TFT display, 256 colors

Resolution

640 x 480 px

Control elements

Touch screen, 8 function keys

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 248 mm (W x H)

Front panel

335 x 275 mm (W x H)

Device depth

67mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

TP1500 Basic color PN

15 inch touch panel with color display
HMI device for tasks in the medium performance range for the use in PROFINET networks. The TP1500 Basic color is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the TP1500 meets high requirements.

Technical Data

TP1500 Basic color PN

Hardware

Display

15.1 inch TFT display, 256 colors

Resolution

1024 x 768

Control elements

Touch screen

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

367 x 289 mm (W x H)

Front panel

400 x 310 mm (W x H)

Device depth

67 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-


SIMATIC HMI Basic Panels 2nd Generation - Device overview

To the top of the page

KTP400 Basic

4 inch widescreen Touch panel with color display and 4 function keys.
Panel for HMI tasks of limited complexity.
The KTP400 Basic is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.

Technical Data

KTP400 Basic

Hardware

Display

4.3 inch TFT, 64K colors

Resolution

480 x 272 px

Control elements

Touch screen / 4 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

Front panel

141 x 116 mm (W x H)

Device depth

43 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.

6AV2123-2DB03-0AX0

To the top of the page

KTP700 Basic and KTP700 Basic DP

7 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other controllers
The KTP700 Basic is available in two versions: KTP700 Basic with an Ethernet interface and KTP700 Basic DP for MPI/PROFIBUS DP connections.

Technical Data

KTP700 Basic

KTP700 Basic DP

Hardware

Display

7 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

Device depth

46 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2GB03-0AX0

6AV2123-2GA03-0AX0

To the top of the page

KTP900 Basic

9 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the medium performance range with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP900 meets higher requirements
The KT900 Basic is only available in a version with an Ethernet interface for the use in PROFINET networks.

Technical Data

KTP900 Basic

Hardware

Display

9 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

251 x 166 mm (W x H)

Front panel

267 x 182 mm (W x H)

Device depth

47 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2JB03-0AX0

To the top of the page

KTP1200 Basic and KTP1200 Basic DP

SIMATIC HMI KTP1200 Basic

12 inch widescreen touch panel with color display and 10 function keys
HMI devices for tasks in the medium performance range for the use in PROFINET or PROFIBUS networks. The KTP1200 Basic is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the KTP1200 meets higher requirements.

Technical Data

KTP1200 Basic

KTP1200 Basic DP

Hardware

Display

12 inch TFT display, 64K colors

Resolution

1280 x 800

Control elements

Touch screen / 10 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 221 mm (W x H)

Front panel

330 x 245 mm (W x H)

Device depth

62 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f (t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2MB03-0AX0

6AV2123-2MA03-0AX0

To the top of the page

dular and compact, versatile, a secure investment, and is powerfully fit for a full range of applications.

A scalable and flexible design, a communication interface that fulfills the highest standards of industrial communication and a full range of powerful integrated technology functions make this controller an integral part of a complete and comprehensive automation solution.

The SIMATIC S7-1200 system comes in five different models, CPU 1211C, CPU 1212C, CPU 1214C, 1215C and 1217C, that may each be expanded to exactly fit your machine requirements.

One signal board can be added inside the front of any CPU to easily expand the digital or analog I/Os without affecting the physical size of the controller.

Signal modules can be connected to the right side of the CPU to further expand the digital or analog I/O capacity.
CPU 1212C accepts two, CPU 1214C, CPU 1215C and CPU 1217C accept eight signal modules.

Finally, all SIMATIC S7-1200 CPUs can be equipped with up to three communication modules on the left side of the controller for performing point-to-point serial communication, as well as various distributed network architectures.


Design

  • Four device versions with different power supply and control voltages

  • Integrated power supply either as wide-range AC or DC power supply (85 to 264 V AC or 24 V DC)

  • Integrated 24 V encoder/load current supply: For direct connection of sensors and encoders. With 300 mA output current also for use as load power supply

  • Two integrated analog inputs 0 to 10 V

  • Two integrated analog outputs 0 to 20 mA for CPU’s 1215C and 1217C

  • Four pulse train outputs (PTO) with a frequency of up to 1 MHz

  • Pulse width modulated (PWM) outputs with a frequency of up to 200 kHz

  • CPU 1211C, CPU 1212C und CPU 1214C:
    One integrated Ethernet interface (PROFINET, TCP/IP native, ISO-on-TCP)

  • CPU 1215C and 1217C:
    Two integrated Ethernet interfaces (PROFINET, TCP/IP native, ISO-on-TCP)

  • Expansion by additional communication interfaces, e.g. RS485 or RS232, PROFIBUS, AS-I, CANopen, etc…

  • Expansion by analog or digital signals directly on the CPU viasignal board (with retention of CPU mounting dimensions)

  • Optional memory expansion (SIMATIC Memory Card)

  • PID controller with auto-tuning functionality

  • Integral real-time clock

  • Interrupt inputs: For extremely fast response to rising or falling edges of process signals

  • Removable terminals on all modules

  • Simulator (optional):
    For simulating the integrated inputs and for testing the user program.

  • Signal Board

    Article No.

    SB 1221 - Digital Inputs

    6ES7221-xxxxx-0XB0

    SB 1221 DI 4 x 5V DC 200 KHz

    6ES7221-3AD30-0XB0

    SB 1221 DI 4 x 24V DC 200 KHz

    6ES7221-3BD30-0XB0

    SB 1222 - Digital outputs

    6ES7222-xxxxx-0XB0

    SB 1222 DQ 4 x 5V DC 200 KHz

    6ES7222-1AD30-0XB0

    SB 1222 DQ 4 x 24V DC 200 KHz

    6ES7222-1BD30-0XB0

    SB 1223 - Digital I/O

    6ES7223-xxxxx-0XB0

    SB 1223 DI 2 x 5V DC / DQ 2 x 5 V DC 200 KHz

    6ES7223-3AD30-0XB0

    SB 1223 DI 2 x 24V DC / DQ 2 x 24 V DC 200 KHz

    6ES7223-3BD30-0XB0

    SB 1231 - Analog inputs

    6ES7231-xxxxx-0XB0

    SB 1231 AI 1 x 13 bit analog input (voltage/current)

    6ES7231-4HA30-0XB0

    SB 1231 T 1 x 15 Bit analog input (thermocouple)

    6ES7231-5QA30-0XB0

    SB 1231 RTD 1 x 15 Bit analog input (resistance)

    6ES7231- 5PA30-0XB0

    SB 1232 - Analog outputs

    6ES7232-xxxxx-0XB0

    SB 1232 AQ 1 x 13 bit analog output (voltage/current)

    6ES7232-4HA30-0XB0

Digital inputs as supplement to the integral IO of the CPUs

The SM 1221 digital input signal modules convert the level of the external digital signals from the process to the internal signal level of the S7-1200.

  • For flexible adaptation of the controller to the task at hand. This avoids superfluous investment. Modules with 8, 16 and 32 input/output channels are available.

  • For subsequent extension of the system with additional input. If the task is extended subsequently, the controller can be upgraded with one of these digital modules. Updating of the user program in TIA Portal is extremely simple.

The portfolio comprises 12 different modules.

Digital input module SM 1221
The SM 1221 digital input signal modules convert the level of the external digital signals from the process into the internal signal level of the S7-1200.

Digital output module SM 1222
Modules with 24 V DC outputs, relay outputs or relay outputs changeover.

Digital hybrid module SM 1223
Digital hybrid modules offer digital inputs and outputs in one device with a small footprint.

Module

Article No.

SM 1221 - Digital input modules

6ES7221-xxxxx-0XB0

SM 1221 DI 8 x 24 V-DC input

6ES7221-1BF32-0XB0

SM 1221 DI 16 x 24 V-DC input

6ES7221-1BH32-0XB0

SM 1222 - Digital output modules

6ES7222-xxxxx-0XB0

SM 1222 DQ 8 x 24 V-DC output

6ES7222-1BF32-0XB0

SM 1222 DQ 16 x 24 V-DC output

6ES7222-1BH32-0XB0

SM 1222 DQ RLY 8 x relay output

6ES7222-1HF32-0XB0

SM 1222 DQ RLY 16 x relay output

6ES7222-1HH32-0XB0

SM 1222 DQ RLY 8 x relay output changeover

6ES7222-1XF32-0XB0

SM 1223 - Digital hybrid modules

6ES7223-xxxxx-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x 24 V-DC-output

6ES7223-1BH32-0XB0

SM 1223 DI/DQ 16 x 24 V DC input /16 x 24 V DC output

6ES7223-1BL32-0XB0

SM 1223 DI/DQ 8 x 24 V-DC input / 8 x relay output

6ES7223-1PH32-0XB0

SM 1223 DI/DQ 16 x 24 V-DC input / 16 x relay output

6ES7223-1PL32-0XB0

SM 1223 DI/DQ 8 x 120/230 V-AC input / 8 x relay output

6ES7223-1QH32-0XB0


Analog inputs for SIMATIC S7-1200

The SM 1231 analog input signal modules convert analog signals from the process into digital signals for internal processing by the SIMATIC S7-1200.

  • With extremely short conversion times

  • For connecting analog actuators and sensors up to 14 bit resolution and different input ranges without additional amplifiers.

  • For solving even more complex automation tasks. Updating of the user program is extremely simple.

RTD-Module SM 1231
The SM 1231 RTD modules enable temperatures to be measured with high precision using resistance-based temperature sensors.
The most popular resistance-based temperature sensors can be used. They are connected directly to the module without amplifiers and all RTDs must be of the same type. The sensors can be connected with 2, 3 or 4 cables.

Thermocouple modules SM 1231
The SM 1231 thermocouple modules enable temperatures to be measured with high precision using established thermocouples. In addition, low level analog signals in the ±80 mV range can be recorded. Four thermocouples each of types J, K, T, E, R, S and N can be used. They are connected directly to the module without amplifiers.
For maximum possible measurement and repeat accuracy, the thermocouple modules should be mounted in locations with low temperature variations.

Hybrid module SM 1234
Analog hybrid modules offer digital inputs and outputs in one module with a small footprint.

Module

Article No.

SM 1231 - Analog input modules

6ES7231-xxxxx-0XB0

SM 1231 AI 4 x 13 bit analog input (voltage/current)

6ES7231-4HD32-0XB0

SM 1231 AI 8 x 13 bit analog input (voltage/current)

6ES7231-4HF32-0XB0

SM 1231 AI 4 x 16 bit analog input (voltage/current)

6ES7231-4ND32-0XB0

SM 1231 AI RTD 4 x 16 bit analog input (resistance)

6ES7231-5PD32-0XB0

SM 1231 AI RTD 8 x 16 bit analog input (resistance)

6ES7231-5PF32-0XB0

SM 1231 AI TC 4 x 16 bit analog input (thermocouple)

6ES7231-5QD32-0XB0

SM 1231 AI TC 8 x 16 bit analog input (thermocouple)

6ES7231-5QF32-0XB0

SM 1232 - Analog output modules

6ES7232-xxxxx-0XB0

SM 1232 DC 2 x 14 bit analog output (voltage/current)

6ES7232-4HB32-0XB0

SM 1232 DC 4 x 14 bit analog output (voltage/current)

6ES7232-4HD32-0XB0

SM 1234 - Analog hybrid modules

6ES7234-xxxxx-0XB0

SM 1234 DC/DC 4 x 13 bit analog input / 2 x 14 bit analog output (voltage/current)

6ES7234-4HE32-0XB0


Description

Integrated PROFINET Interface

The SIMATIC S7-1200 supports communication with PROFINET IO devices as a PROFINET IO controller. By means of the integrated Web-server, information can be called via the CPU and process data via a standard Web browser. Data can also be archived from the user program during runtime.

Utilizing established TCP/IP standards, the integrated PROFINET interface provided with the SIMATIC S7-1200 can be used for programming or to communicate with HMI devices and additional controllers. As a PROFINET IO controller, SIMATIC S7-1200 now supports communication with PROFINET IO devices and drives.
The interface consists of a noise-immune RJ45 connector with auto-cross-over functionality,
which supports Ethernet networks and features a data transmission rate of up to 10/100
Mbit/s.

New with firmware version 4.0 CPU’s Profinet iDevice:
Easiest configuration for S7-1200 CPU’s into a Controller / device architecture by reading & writing into each others IO image.

Communication with third-party devices

Seamless integration of devices from other manufacturers is possible with the integrated PROFINET interface on the SIMATIC S7-1200. It is possible to connect and communicate with multiple third-party devices utilizing the supported open Ethernet protocols TCP/IP native and ISO on TCP.
This communication capability, which is configured with standard T-Send/T-Receive instructions provided by the integrated engineering system SIMATIC STEP 7 Basic, offers you an even higher level of flexibility in designing your automation solution.

New with firmware version 4.0 CPU’s now have more communications options:

  • CM IO link Master
    Fast and easy integration of the SIRIUS compact starters, M200D starters and SIRIUS soft-starters for simple starter control as well as third party IO link devices

Easy communication modules

Up to 3 communication modules can be added to any of the SIMATIC S7-1200 CPUs.
The RS485 and RS232 communication modules are fit for serial, character-based point-to-point connections. The library functions USS drive protocol and Modbus RTU Master and Slave protocols are already included within the SIMATIC STEP 7 Basic engineering system.

To the top of the page

Fast fieldbus communication via PROFIBUS – the fieldbus standard

Thanks to the addition of Master or Slave to PROFIBUS DB for SIMATIC S7-1200 - the powerful fieldbus communication with fast reaction times - a uniform communication from the field level to the control level is achievable. This supports one of the most important requirements in the segment of compact automation.
There are two new communication modules (CMs) that facilitate the connection of S7-1200 to PROFIBUS. Up to 16 field devices may be connected as DP slaves with the DP Master
CM 1243-5, as decentralized peripheral ET 200 units, for example. The S7-1200 may function as a DP slave with the CM 1242-5 and may thus be connected to any other DP master. Both modules are easily connected to the backplane of the CPU on the left side.

Simple networking

To minimize cabling and provide maximum networking flexibility, the CSM 1277 Compact Switch Module can be used to configure a uniform or mixed network - with line, tree or star topologies. The CSM 1277 is a 4-port unmanaged switch, which allows you to connect the SIMATIC
S7-1200 with up to three additional devices.

Simple Telecontrol applications via GPRS

Together with the GPRS communication processor, the S7-1200 CPU supports simple Telecontrol applications for monitoring and control of distributed stations using general packet radio service (GPRS). This enables machine to machine Telecontrol via Teleserver Basic as well as Data Acquisition. SMS messaging for event driven fault diagnostics are made possible with the GPRS module, and full Teleservice functionally can be realized for remote diagnostics, configuration & programming.

Easy communication via AS-i

AS-i is an open and manufacturer independent bus system transmitting process and machine level digital and analog signals up to the control system. Universal interface between actuators and sensors on the field level with easy integration of I/O modules, positioning switches, signaling columns, load feeders and motor starters into SIMATIC STEP 7 Basic


SIMATIC HMI Basic Panels 1st Generation

KP300 Basic mono

3 inch panel with FSTN- monochrome display

The KP300 Basic mono is the ideal HMI-component for the small S7-1200 controller systems. The color of backlight can be programmed (white, green, yellow or red) and assigned to individual alarms. The KP300 can thus also be used as an alternative to an alarm indicator lamp with no need for additional cabling, assigning I/Os and programming.

Technical Data

KP300 Basic mono PN

Hardware

Display

3.6 inch FSTN , monochrome

Resolution

240 x 80 pixels

Control elements

10 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

149 x 82 mm (W x H)

Front panel

165 x 97 mm (W x H)

Device depth

36 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

250

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP400 Basic mono PN and KTP400 Basic color PN

4 inch touch panels with function keys and monochrome or color display
The KTP400 Basic mono is a cost-effective device for small-scale HMI tasks for the use in PROFINET networks; particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP400 Basic color is the ideal HMI-component for the small to medium S7-1200 controller systems equipped with a 4.3 inch TFT display offering 256 colors

Technical Data

KTP400 Basic mono PN

KTP400 Basic color PN

Hardware

Display

3.8 inch STN, 4 greyscales

4.3 inch TFT, 256 colors

Resolution

320 x 240 px

480 x 272 px

Control elements

Touch screen / 4 function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

123 x 99 mm (W x H)

Front panel

140 x 116 mm (W x H)

197 x 141 mm (W x H)

Device depth

40 mm

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

250

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KP400 Basic color PN

4 inch key panel with color display
Panel for HMI tasks of limited complexity; where keypad operation is preferred.
The KP400 Basic color is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
With regard to the type of applications the KP400 Basic color can replace an OP 77A.

Technical Data

KP400 Basic color PN

Hardware

Display

4.3 inch TFT, 256 colors

Resolution

480 x 272 px

Control elements

Membrane keypad (26 keys), 8 function keys

User memory

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

135 x 171 mm (W x H)

Front panel

162 x 190 mm (W x H)

Device depth

40 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

KTP600 Basic mono PN and KTP600 Basic color DP/PN

6inch touch panels with function keys
The KTP600 Basic mono PN is a favourably priced Basic Panel with a convenient 6 inch grey scale display for HMI tasks of limited complexity yet enhanced requirements in size and connection to a PROFINET network; especially in combination with SIMATIC S7-1200 controllers but also with other controllers.
The KTP600 Basic color is available in two versions: KTP600 Basic color DP for MPI/PROFIBUS DP connections and KTP600 Basic color PN with an Ethernet interface.

Technical Data

KTP600 Basic mono PN

KTP600 Basic color DP/PN

Hardware

Display

5.7 inch STN /4 greyscales

5.7 inch TFT / 256 colors

Resolution

320 x 240 px

320 x 240 px

Control elements

Touch screen / 6 Function keys

User memory

512 KB

512 KB

Interfaces

1 x RJ 45 Ethernet for PROFINET
-

1 x RJ 45 Ethernet for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

214 x 158 mm (W x H)

Device depth

51 mm

51

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

200

Message classes

32

32

Process pictures

50

50

Variables

500

500

Vector graphics

x

x

Bar graphics

x

x

Curve diagrams

x

x

Recipes

5

5

Archiving

-

-

Visual Basic Scripts

-

-

To the top of the page

KTP1000 Basic color DP / PN

10 inch touch panel with function keys and color display
Basic Panel for HMI tasks in the medium performance range (without scripts and archives) with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP1000 meets higher requirements
The KTP1000 Basic color is available in two versions: KTP1000 Basic color DP for MPI/PROFIBUS DP connections and KTP1000 Basic color PN with an Ethernet interface.

Technical Data

KTP1000 Basic color DP/PN

Hardware

Display

10.4 inch TFT display, 256 colors

Resolution

640 x 480 px

Control elements

Touch screen, 8 function keys

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET or 1 x RS 485 for PROFIBUS/MPI

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 248 mm (W x H)

Front panel

335 x 275 mm (W x H)

Device depth

67mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-

To the top of the page

TP1500 Basic color PN

15 inch touch panel with color display
HMI device for tasks in the medium performance range for the use in PROFINET networks. The TP1500 Basic color is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the TP1500 meets high requirements.

Technical Data

TP1500 Basic color PN

Hardware

Display

15.1 inch TFT display, 256 colors

Resolution

1024 x 768

Control elements

Touch screen

User memory

1024 KB

Interfaces

1 x RJ 45 for PROFINET

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

367 x 289 mm (W x H)

Front panel

400 x 310 mm (W x H)

Device depth

67 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) or higher

Messages

200

Message classes

32

Process pictures

50

Variables

500

Vector graphics

x

Bar graphics

x

Curve diagrams

x

Recipes

5

Archiving

-

Visual Basic Scripts

-


SIMATIC HMI Basic Panels 2nd Generation - Device overview

To the top of the page

KTP400 Basic

4 inch widescreen Touch panel with color display and 4 function keys.
Panel for HMI tasks of limited complexity.
The KTP400 Basic is designed for the use in PROFINET networks;
particularly suitable for cramped space conditions directly at the machine especially in combination with SIMATIC S7-1200 controllers but also with other controllers.

Technical Data

KTP400 Basic

Hardware

Display

4.3 inch TFT, 64K colors

Resolution

480 x 272 px

Control elements

Touch screen / 4 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

123 x 99 mm (W x H)

Front panel

141 x 116 mm (W x H)

Device depth

43 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.

6AV2123-2DB03-0AX0

To the top of the page

KTP700 Basic and KTP700 Basic DP

7 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the lower and medium performance range with SIMATIC S7-1200 controllers but also with other controllers
The KTP700 Basic is available in two versions: KTP700 Basic with an Ethernet interface and KTP700 Basic DP for MPI/PROFIBUS DP connections.

Technical Data

KTP700 Basic

KTP700 Basic DP

Hardware

Display

7 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 Ethernet for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

197 x 141 mm (W x H)

Front panel

214 x 158 mm (W x H)

Device depth

46 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2GB03-0AX0

6AV2123-2GA03-0AX0

To the top of the page

KTP900 Basic

9 inch widescreen touch panel with color display and 8 function keys
Basic Panel for HMI tasks in the medium performance range with SIMATIC S7-1200 controllers but also with other controllers. With regard to screen size and resolution the KTP900 meets higher requirements
The KT900 Basic is only available in a version with an Ethernet interface for the use in PROFINET networks.

Technical Data

KTP900 Basic

Hardware

Display

9 inch TFT, 64K colors

Resolution

800 x 480 px

Control elements

Touch screen / 8 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET / 1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

251 x 166 mm (W x H)

Front panel

267 x 182 mm (W x H)

Device depth

47 mm

Software functions

Configuration software

WinCC Comfort (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f(t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2JB03-0AX0

To the top of the page

KTP1200 Basic and KTP1200 Basic DP

SIMATIC HMI KTP1200 Basic

12 inch widescreen touch panel with color display and 10 function keys
HMI devices for tasks in the medium performance range for the use in PROFINET or PROFIBUS networks. The KTP1200 Basic is the ideal HMI-component for the medium and upper S7-1200 controller systems
With regard to screen size and resolution the KTP1200 meets higher requirements.

Technical Data

KTP1200 Basic

KTP1200 Basic DP

Hardware

Display

12 inch TFT display, 64K colors

Resolution

1280 x 800

Control elements

Touch screen / 10 Function keys

User memory

10 MB

Interfaces

1 x RJ 45 for PROFINET
1 x USB host

1 x RS 485 for PROFIBUS/MPI
1 x USB host

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 221 mm (W x H)

Front panel

330 x 245 mm (W x H)

Device depth

62 mm

Software functions

Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages

1000

Message classes

32

Process screens

100

Tags

800

Vector graphics

x

Bar graphics

x

Curve diagrams

f (t)

Recipes

50

Archiving

x

Article No.:

6AV2123-2MB03-0AX0

6AV2123-2MA03-0AX0

To the top of the page

دیدگاه خود را بیان کنید
پرسش خود را مطرح کنید

کلیه حقوق مادی و معنوی این وب سایت برای پارس کنترل محفوظ می باشد
طراحی سایت - هاستینگ - توسط سنادیتا
SANADATA | SanaCMS 12.2
